Multimode Fiber Optic Indoor Cable , Dual Optical Cable Hydrolysis Resistant

Name: Multimode Fiber Optic Indoor Cable Dual Optical Cable Hydrolysis Resistant
Brand: SINOHONE
Price: 0.35 USD

Buy cheap Multimode Fiber Optic Indoor Cable , Dual Optical Cable Hydrolysis Resistant product

Brand Name : SINOHONE

Model Number : Duplex Figure 8 Cable

Certification : CE/ROHS/ISO9001

Place of Origin : Sichuan, China

MOQ : 2000 METER

Price : USD0.35~3.6/METERS

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 500 Kilometer/Kilometers per Day Ftth Drop Cable

Delivery Time : 5 Days

Packaging Details : Iron-wooden drum or fumigated wooden drum,normal wooden drum

Product name : 2 Core Multimode Indoor Fiber Optic Cable

Color : Black/White

Application : FTTH FTTB FTTX Network

Contact Now

2 Core Multimode Indoor Fiber Optic Cable Dual Optical Cables Hydrolysis Resistant

Quick Details:

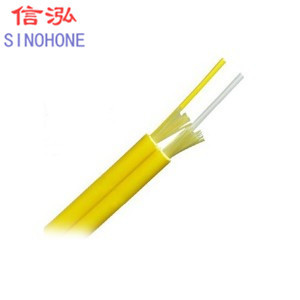

A duplex fiber optic cable consists of two strands of glass or plastic fiber. Typically found in a "zipcord" construction format, this cable is most often used for duplex communication between devices where a separate transmit and receive are required.

Characteristics:

Tight buffer fiber, be striped easily and excellent flame retardant;
Aramid yarn makes the optical fiber cable have excellent performance of flame and tensile strength resistance;
Easy installation. Separated easily and used as single unit;
Material of outer sheath shall be corrosion resistant, water-blocking and flame retardant and environment friendly etc.
Not be influenced by electromagnetism due to all dielectric structural design.

Applications:

Access network, Fiber to the Home(FTTH)

Standards:

YD/T1258.3
IEC60794-2-10/11

Temperature:

Operating temperature: -40°C~+60°C
Storage, transportation and installation temperature: -5°C~+50°C

Technical Parameters

Nominal diameter (mm)	Nominal weight (kg/km)	Permitted Tensile(N)		Permitted Crush(N)		Bending Radius(mm)
		Permitted Tensile(N)		Permitted Crush(N)		Bending Radius(mm)
		Long term	Short term	Long term	Short term	Static	Dynamic
1.6*3.3	5	100	200	100	500	10D	20D
1.8*3.7	6	100	200	100	500	10D	20D
2.0*4.1	8	100	200	100	500	10D	20D
2.4*4.9	11	100	200	100	500	10D	20D
2.5*5.1	12	100	200	100	500	10D	20D
2.8*5.7	14	100	200	100	500	10D	20D
3.0*6.1	15	100	200	100	500	10D	20D

Note:

The structural dimensions and materials used can be designed according to the demands of the customers.
